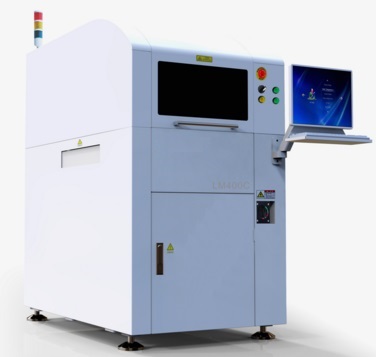

LM400C Descriptions

laser Type： CO2    / 5W（*1）,Forced Air Cooling
Laser wavelength: 10.6μm

Laser level： Class4

Laser Power： 5W

Point Diameter： 0.11mm

Work Style： laser XY moving

Laser Material : whit paint (Blue or Green PCB)

QR code mark( Min Size)： 2*2mm

Cycle Time： Signet code (3*3mm size  , includ 20 data QR code )<0.3S

Save document Q'ty : 10,000

PCB Size: 50*50mm(min)L510*W400mm(max)

PCB Thickness: 0.5—5mm

Resolution of Engraving :  ≦0.11mm

Equipment Precision : ±15um

Transfer Speed : 50-3000mm/min

Scan speed: >1999mm/S
